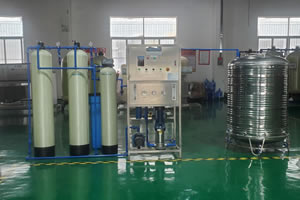

Reverse Osmosis Water Treatment Equipment

Applications:
RO (reverse osmosis) water treatment equipment adopts multi medium beforehand filter, active carbon filter and PP sediment membranes filter as beforehand filter which can remove suspending particles, dust, particles, organic chemicals, unpleasant taste, chlorine of raw water and make sure that the raw water complies with RO inlet requirement. Then RO filter can filter dissoluble substance, bacteria, pesticide, heavy metal particles as well as the carcinogen like chloroform, fluorine and others which cannot be wiped out by normal treatment methods.

Range of use:
Food and beverage industry, pharmaceutical industry, chemical processing industry, chrome plating industry, water and waste water treatment industry etc.
Capacity: 200~100000LPH.
Water pump, which is the core component of reverse osmosis water treatment equipment, adopts Denmark's famous brand pump-Grundfos, while the reverse osmosis filter is imported from the U.S. Hydranautics company. This equipment is maintained easily and has simple structure. When the conduction of the raw water is lower than 1000us/cm, the water treated by this equipment can meet the pure water standard. Therefore, it is the ideal reverse osmosis pure water treatment equipment for customers all over the world.

Functions and Features
1. The water treatment equipment introduces SS304 stainless steel membrane housing and opening design, allowing clear display of production and convenient maintenance.
2. High quality TFC compound RO membrane treatment crafts allow the operation with very low pressure and a desalinization ratio of 98% or more.
3. Auto-check conductance display enables operators to have a monitoring towards water quality.
4. Multi-medium beforehand filter helps to achieve an improved water treatment quality.
5. High-efficiency active carbon filter wipes chlorine out of raw water, protects RO membrane and adjusts the water taste.
6. Safe and reliable electrical system: The water treatment equipment could be automatically stopped when there is an open circuit, short circuit or electric leakage.
7. Intelligent circuit design: Our equipment could be stopped and activated automatically when water level is higher than the max. allowable level or lower than the min. allowable level.
8. RO membrane could be washed automatically or manually, which can protect RO membrane easily.

Technical Parameters
Model JND RO1000
Capacity of pure water 200-100000LPH
RO Stage One Stage/Two Stage
Power Supply AC380V/415V±5% 50Hz/60Hz
Desalinization Ratio ≥98%
Rated Operating Pressure 0.7-1.5Mpa
Temperature of Raw Water 1-45℃
PH of Raw Water 2-11
Conductivity of Raw Water ≤1000US/CM
